CHASE and AVL - remote tracking with the GPS Software
Updated 2145 BST UK Time ( 2045 Z/GMT/UT/GPS Time ) Wednesday 26th June 2024 )
26th June 2024: WARNING! Gotop Trackers stopped 377 days after purchase - but see further below. e.g. some still work ;-)
"where has that vehicle been every minute last week ?"
;
"where is my child now, and what is he doing ?"
;
"where is our cat or dog ?";
"what can he hear ?";
"what can he see ?";
"Sit!"; "Fetch!";
"Straight on!";
"Turn left!";
"Turn Right!";
"Kill!";
"Come back!";
"You naughty boy !"; "Good Boy!";
Don't do that again!" :-)

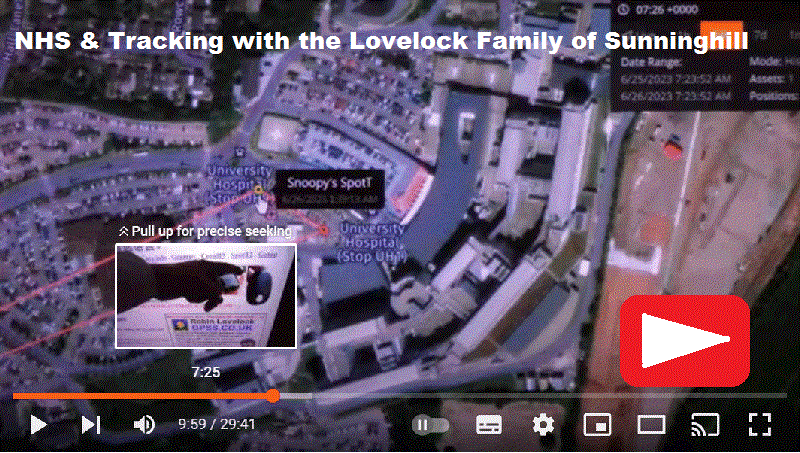

Tap or Click below to play video
from Robin's
AsOnTV Page
. From early DOS software, in late 1980's, into the 1990s. Multiple vehicle tracking, SatNav, DF, etc, etc :-)

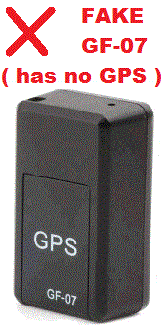

That fake GF-07 GPS Tracker on the left has no GPS.
Those other trackers, from years ago were great. Are smaller ones available that are not fake ? :-)
a message from Robin ... from Years ago ! But some new sections added :-)
This page was first set up in 1998, but our work was public in TV coverage of the 1995 London Motor Show.
It exploited work I'd done since 1963 at
Radyne
,
Ferranti Digital Systems
( 1965-1970 )
,
City University
( 1965-1969 )
,
NATO SHAPE Technical Centre
( 1970-1980 )
,
and
EASAMS
( 1981-1994 )
.
I started the
Sunninghill Systems
business in 1994.
Since 2002, not long after 911, every 'phone could be tracked, "to GPS accuracy", even if it did not have a GPS.
Cambridge Positioning Systems won the contract to provide the technology, in every mobile 'phone mast. Not long
after, my GPS Software was used by a company offering the tracking service to the general public.
e.g. Parents would give their child or parent an ordinary 'phone, after signing up to the service. A text would be
sent, asking if it was OK for the 'phone to be tracked - by whoever. Whoever could then visit a link
to track their child, partner, parent, or friend. Visit
Mobile Phone to Phone Tracking - "Cool but Scary" :-)
or that old 'phone on the right. Visit ? with a Click, Tap, or voice command.
For testing, I used June's father,
Jack Ponsford
.
Visit Jack to read about his amazing life, including in WW2: Caught by Germans near Dunkirk; POW in Polish Stalag 8b;
Normandy; First hand Royal stories, like moving the Fergussons to Dummer from their place opposite us; putting down
carpets; Interacting with the young Fergie and her sister; Geocaching trips with me; Use of trackers and Web cams
in his house, as he grew older. If a care worker visited, he might say, pointing to the webcam,
"You're are on camera !" :-)
In recent years, SatNav, GPS tracking, and AI, is simply a hobby, which overlaps with numerous other hobbies,
charities, and having fun. e.g.

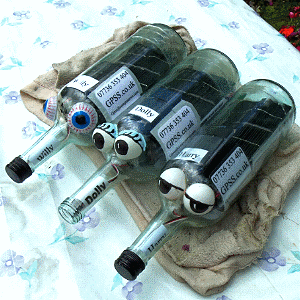

GPS Bottles
and
Snoopy's Robot Boats
( 2008-Present )
There are just not enough hours in the day :-)
These words below are almost unchanged since 1998, but see pictures, videos, and links being added above :-)
In the early 1990's,
Remote tracking was in it's infancy,
and the almost exclusive preserve of military and police. Not long after, in the late 1990s,
it became known as "AVL" or "Automatic Vehicle Location", because it became economic for commercial
fleet operators to track their vehicles.
In recent years, with lower cost hardware from China, detailed mapping on the net such as from google,
and smart 'phones, GPS remote tracking is available to the consumer - and not just to track their car.
Today, you only need to search on e-bay to find good, low cost GPS trackers, at as little as 30 GBP (40 or 50 USD),
that can be simply used by sending them a text from your mobile 'phone. Many of these GPS trackers are intended to be hidden
in a vehicle - permantly connected to the 12v battery. Others, known as "personal trackers", have their own small
internal battery, and can be carried in a pocket or handbag.
Many of these trackers can be used with a mobile 'phone, simply by texting them a special "WHERE" message.
They then reply, within typically less than a minute, with a text giving a latitude and longitude.
This can be typed into google maps, or simply looked up on a paper map that has already been printed.
Some, like the blue Concox GT02A above-right, allow a "URL" text to be sent, resulting in reply of a google maps link.
If the user has a smartphone on the Net, they just click on the link to see a detailed map of where the tracker is.
Consumer products have always brought down the cost of technology. e.g. colour screens, computers, digital communications.
The "Solution Providers" have always needed to "keep an eye open" for relevant products - even for niche-market
applications in the military, police and business market sectors. Excellent hardware products are now available
from China, but these products - and particularly software and web-based tracking, need to be tested carefully before selling on
- or you will have unhappy customers ;-)
Here since 1st January 2013:
This tracker from "
Delight-Digi
" on ebay is an example of why you should be careful:
it cost less than 10 GBP (15 USD?) and looked advanced compared with other trackers.
Fake product ? Cherry at
Delight-Digi
admitted no GPS inside
- despite their e-bay adverts and the big blue "GPS" label !

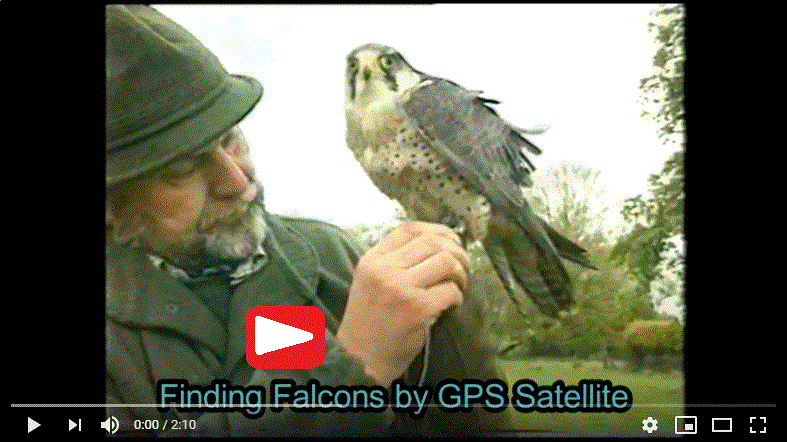

In February 2018 we found this delightful video from 2001, when the GPS Treasue Hunting hobby of
Geocaching
had only just started. The BBC World broadcast went into 200 million homes,
but the lovely part was GPS-training of the young Sunninghill Geocachers on our front lawn.
Jack, below, also appeared in the TV broadcast. He passed away in early 2017,
but you can read all about him on
Jack
- a tribute to this remarkable man.
Using an old mobile 'phone as a tracker - bright idea from Mick Gulovsen in Australia :-)
How about using an old mobile 'phone as a tracker ? Easy to power in a car, off it's battery. Maybe smaller like robot boats. Or animals, like dogs or even cats ?

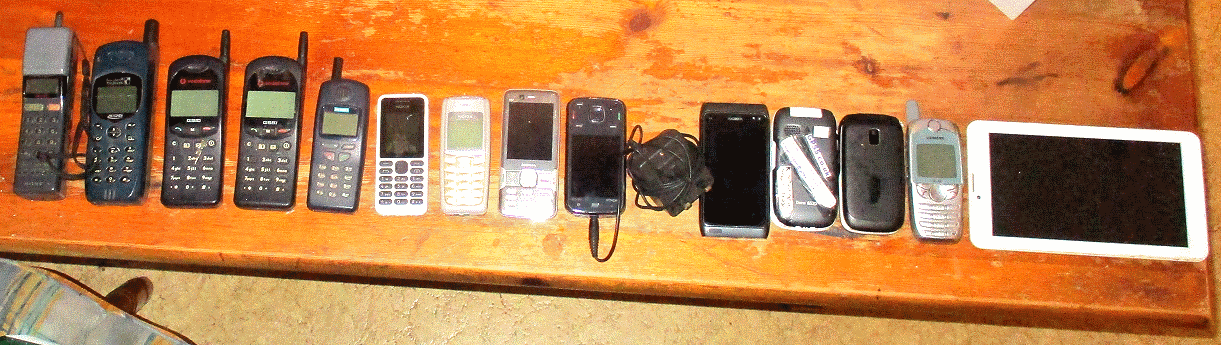

Here are some of our old mobile 'phones June found, laid along our kitchen table. They are roughly in date order, with the oldest on the left.
That second from left is a
Thuraya Satcoms / GSM 'phone
given me by Graham Avis of Hughes Network Systems, for testing, before we closed our deal. See the page :-) Tap or Click on Mick Gulovsen's face for the
Micromite page. Maybe we'll put one or two in our new Camper Van - after we've chosen one.
Beside Mick is Caterina the dancing cat, testing Tody's Pocket Pal. More later :-)
"Starcam" web cams and "Pocket Pal" ( "Footprint" ) GPS Phone Pendent
Here are two products already used to support my 97 year old father in law, Jack, who does everything for himself at home.
The first is the "Starcam", purchased from China years ago, at about £30 off e-bay. The original Starcams are still used
around Jack's house, work well, and can be accessed from both smartphones and software, called "IP Camera Super Client" on our Windows PC.
My problem is in finding more, still supported by the PC software. Recent versions of the product look identical,
but can only be accessed by smartphone, and without the extra features supported on the PC, such as motion detection, sound,
and recording of pictures and video. Can anyone help me locate suitable "Starcam" product ? The "X009" below might also be
a product suitable for support to the elderly.
Jack avoids publicity - although this photo was among those in Golfer's World, in the article about Sunningdale Artisan's Golf Club.
He spent most of the war years in Stalag Luft 8b, in the adjactent bunk to Sid De Haan, who later set up SAGA Holidays.
Jack has many a tale to tell, including about the Royal Family. e.g. helping the Fergussens to move from Sunninghill to Dummer ! :-)
The next example is "Pocket Pal", supplied by Bracknell Forest Council, and
publicized on ITV
shortly after rollout in February 2016.
There are many companies distributing similar or identical product under different names, including
"Pocket Pal", "Footprint", "MindMe", "Amigo", "Spotter", "Stray Star", and "Pebble".
I wished to find reliable suppliers of this product(s), particularly regarding
the firmware within the product and the web based services and sofware used to support it.
The huge benifits and risks of using product from China is well known - to some of us.
I have been working with the factory in Shenzhen, for purely charitable reasons.
e.g. providing free advice to those exploiting these products, such as local Government and Health Authorities.
Click on the picture on the right see the details of a typical Pocket Pal tracking screen.
I contacted the UK supplier who sells it as "Footprint" to Bracknell Council who then call it "Pocket Pal".
I was soon in contact with the factory in Shenzhen, China.
Tests show that the technology works brilliantly - if used properly and supported by an adequately staffed 24/7 call centre.
Early questions of Forestcare staffing, particularly "out of hours", meant that I researched support from
adjacent local Government areas. Windsor and Maidenhead Borough Council led me to this useful
List of Personal Locators
.
Pocket Pal was retained, and Forestcare have given Jack excellent support this year.
e.g. a brief chat with him if he presses the SOS button by accident, or the power runs low due
to poor contact with the charger. The log of all GPS movements, SOS calls, or power low events,
can all be seen by the family. i.e. "looking over the shoulder" of Forestcare.
The old Forestcare "Lifeline" equipment, installed years ago,
was replaced by that from Surrey's Runneymede Community Alarm & Telecare Centre.
Jack's Doro mobile 'phone now has the "Help" button programmed to alert family and the Surrey 24/7 Support Centre.
i.e. Jack's alarm system is triplicated.
Soon after contact with the Shenzhen factory, I was amazed by how quickly they fixed minor bugs in features not used by Forestcare.
This was often within hours of it being raised in our friendly email exchanges.

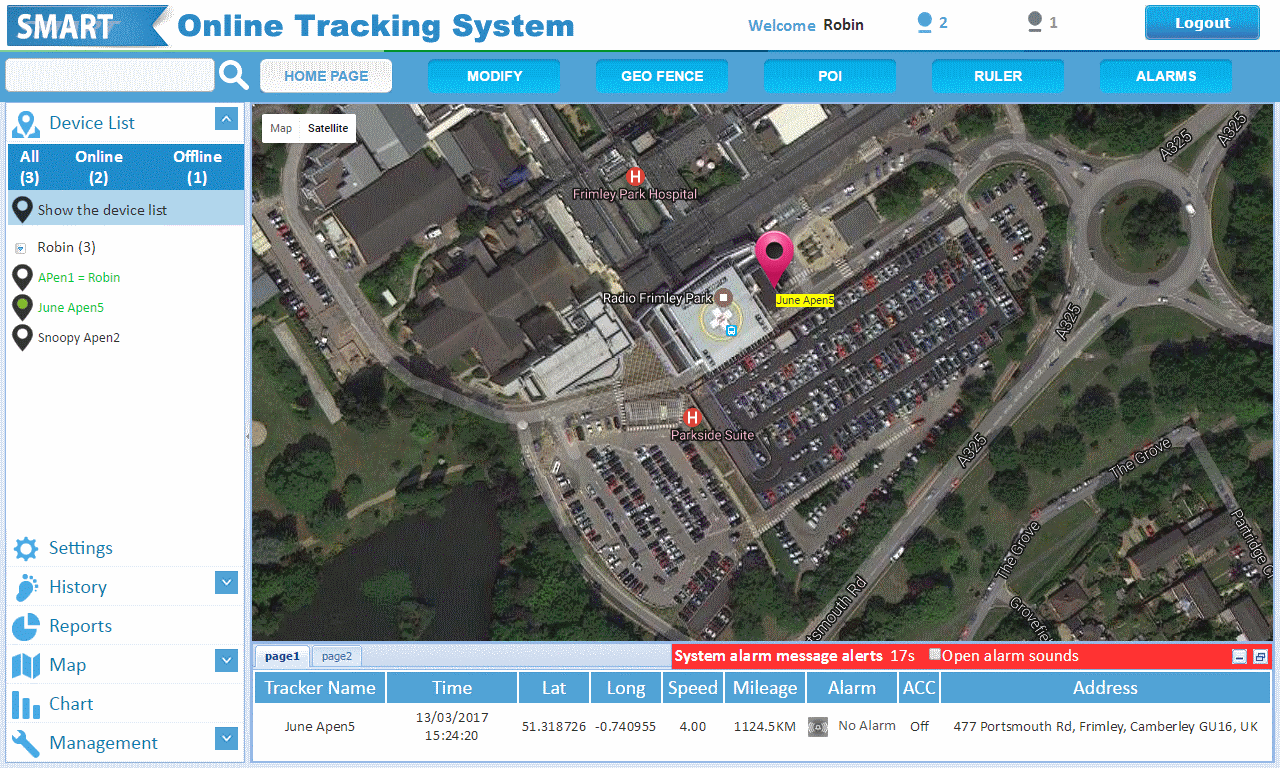

Friends and myself and my wife are now using Pocket Pals for other applications. e.g. Hands-free phones,
or as GPS-loggers, recording our walks in the country, minute-by-minute, looking for a
Geocache,
then looking at our track in 3D using a KML file in Google Earth.
The Pocket Pal may even be used in
Snoopy's Robot Boat that attempts to cross the Atlantic every year.
See
Jasper Coppings article in the Sunday Telegraph the Sunday before the 2012 launch.
This sparked publicity across the World, including UK BBC Radio and TV coverage, and Newspapers in USA and even New Zealand.
Click on pictures to enlarge.
The Pocket Pal comes with an easy to use instruction book, and the main task is to insert a SIM card.
For many years, whatever the tracker, this was a simple task, by temporarily putting the SIM card into
a simple mobile 'phone - like my old Nokia here. Top up can be a bit more fiddly on some networks,
since they are not now organised for where the SIM card is in a tracker. However, most pay-as-you-go
services are fine, and you should not need to do it very often, based on my experience with my
first Pocket Pal: running 24/7 for several months, updating the web site map every 3 minutes
- or in recent weeks, every one minute.
We've been using Tesco Mobile Pay As You Go, which uses the O2 Network.
The simplest procedure seems to get a new PAYG SIM, off the shelf,
then go direct to the Customer Service Desk, instead of the normal check out.
They can put some credit on it, in exchange for cash or credit card.

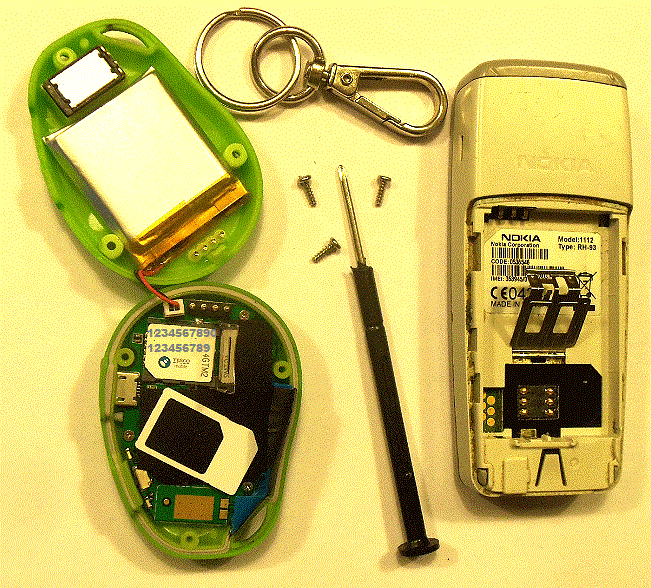

The SIM is then ready to put in the 'phone or GPS tracker.
We had problems earlier in the year, in rapid loss of credit.
This was eventally diagnosed to my trying to get two Pocket Pal
trackers to talk to each other - not a good idea :-)

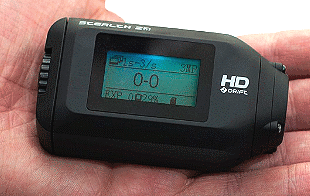

The Drift Stealth 2 Action Camera looks like a product worth exploring, and I was given a demonstration
by my flying friend at RAF Odiham. It has the usual features such as recording high resolution pictures
and video onto an SD card, but what interested me was the Bluetooth remote camera capability.
This might make it simple to plug into similarly compact mobile 'phone or SatComs Global communications.
The "PocketCam" from Sophie at Long-Boom in Shenzhen - nice product :-)

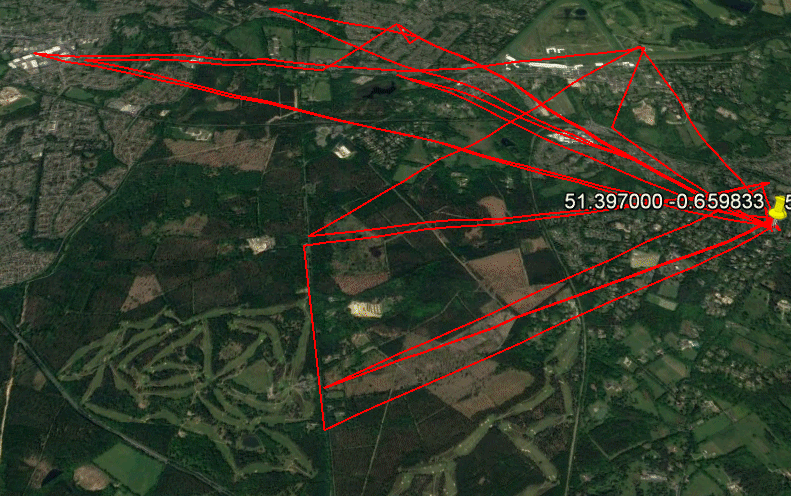

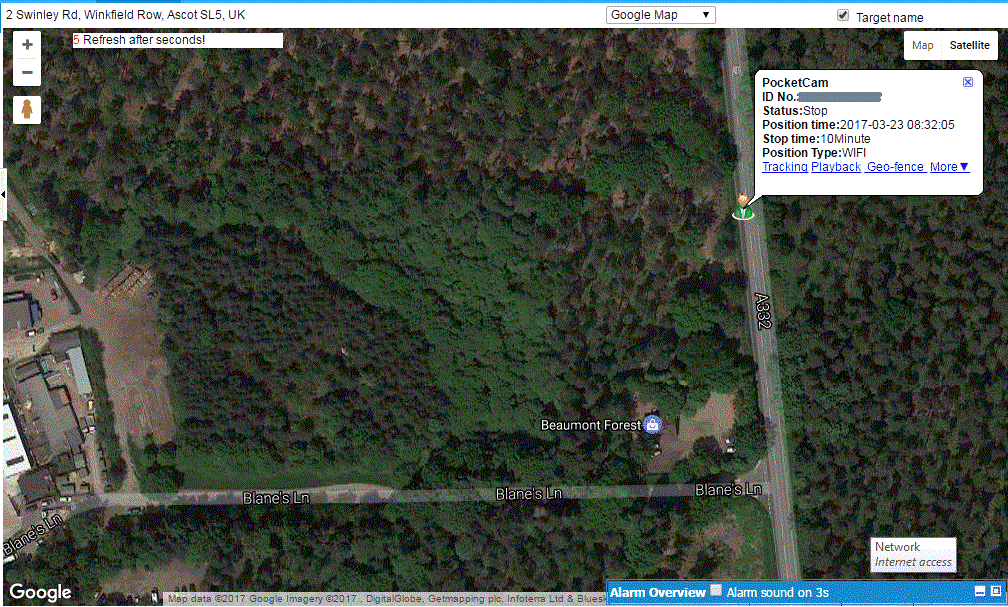

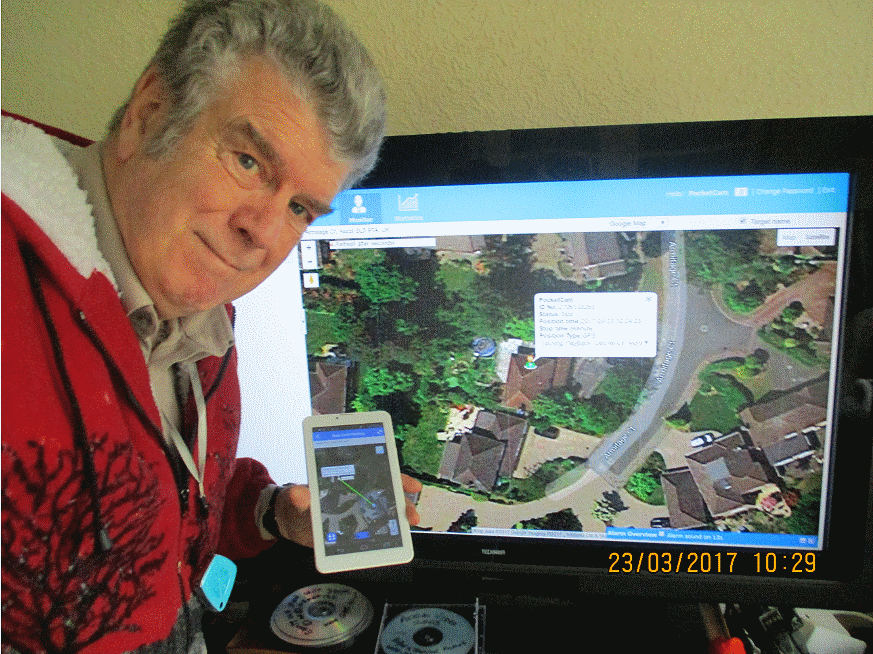

Click on the pictures below to expand, or open the Google Earth KML file,
PCAM1.KML
.

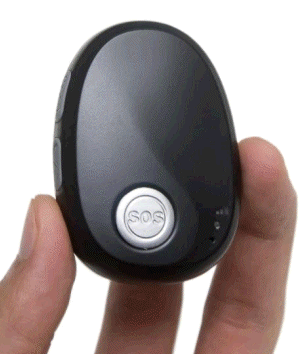

I got four of these "3G GPS Tracking SOS Pendant" some weeks ago, but it was not until 22nd March that I had time to try one: very simple procedures to follow, including
popping in a SIM and charging it up. I first heard of this through Jack, who mentioned that one was on Kim's dog Kaiser. It has
given myself an interesting little hobby project: it seems wherever I visit, a doggy has been there before me :-)

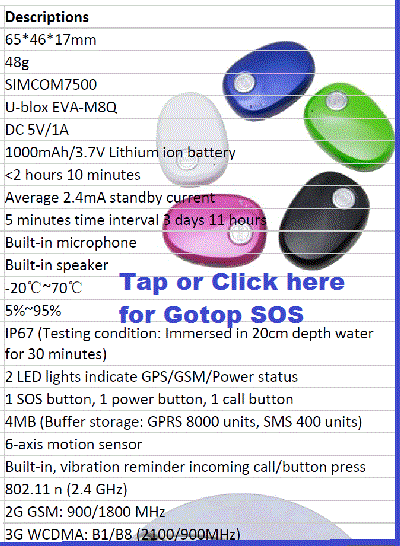

Added in July 2023 - New products from Gotop in China ...
26th June 2024: WARNING! Gotop Trackers stopped 377 days after purchase - but see further below. e.g. some still work ;-)
from Robin in July 2023:
I must emphasise that I am NOT in the business of promoting particular suppliers,
and certainly not in making money from any of this. But when I come across what looks
like good product, and good service, at a low price - I like to give it credit.
Especially when the products and services might be used to do good, like aids
for the sick and elderley, tracking family, friends, and pets, and fun projects like
Snoopy's Robot Boat
:-)
Maybe more here soon. e.g. that black Gotop "PocketPal" on the right,
still being tested, on journeys such social visits, funerals, and hospitals.
Very relevant to Robin's
Family
;-)
The following section "an extra Gotop tracker ?" below is an extract from Snoopy's
Blog10 page
.
QUOTE
an extra Gotop tracker ? ...
Tap or Click on pictures below to expand. From left to right: 1) from that video above; 2) from the Gotop tracking page

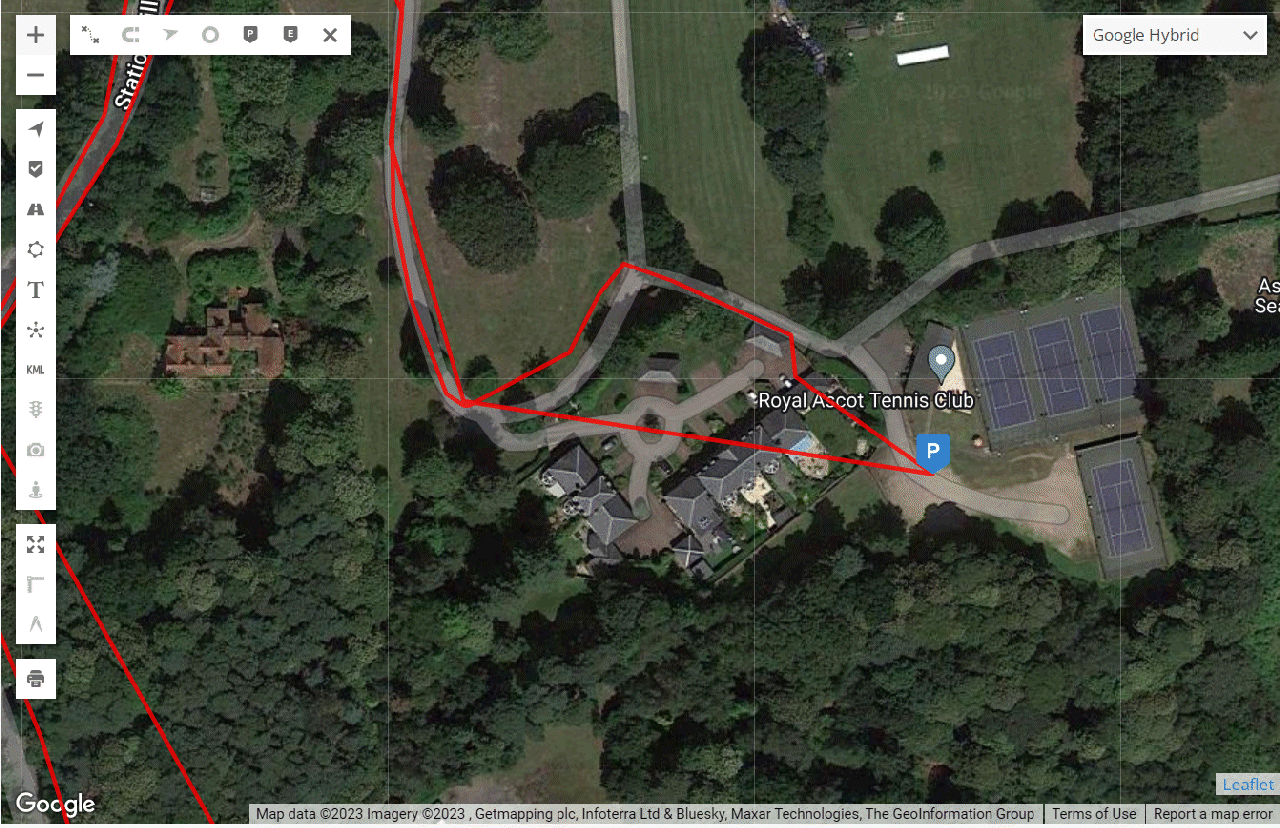

- more facilities than needed by many; 3) June's trip to play tennis, with a Gotop tracker in her car K555GPS :-)
Robin is hoping
Gotop
can show how their website can be used to provide a simple link, that can be made public,
to show the live position, and perhaps recent track, of a tracker, like that on the right.
Thanks to Allan at
Gotop
for explaining how to provide simple tracking links:

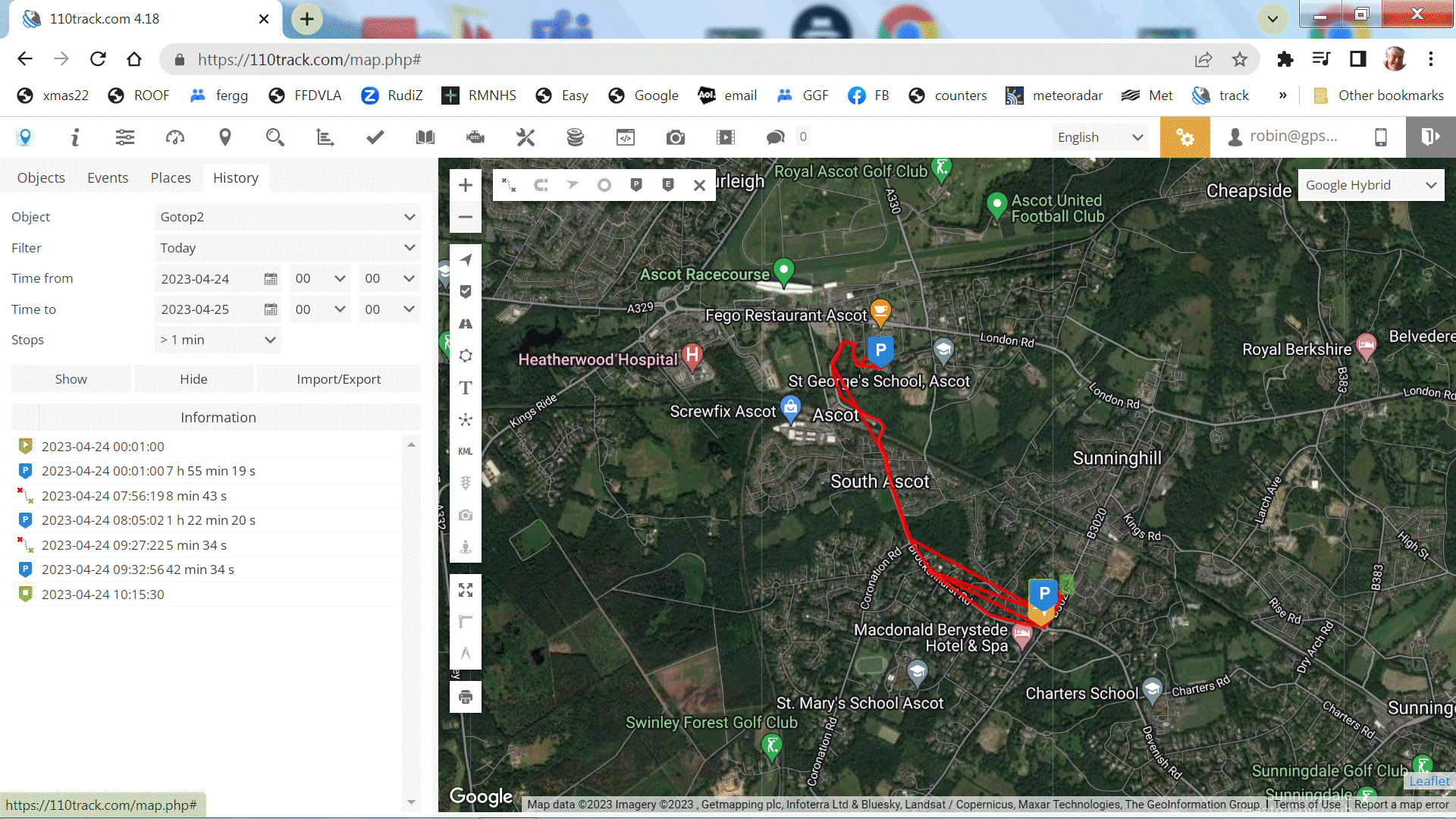

Gotop1 in Robin's Merc C4GPS : https://110track.com/index.php?su=7EDFBF3AA6C046030D797D767E69011B
Gotop2 in June's Merc K555GPS : https://110track.com/index.php?su=EDF901FEF5E7B32275134DDF6DAB98CC
Friday 19th May 2023:
Robin now has a third Gotop Solar tracker for tests - which continue, and LOTS of other things to do :-)
Allan continues to give great support. e.g.
sending an SMS (text) like FREQ,123456,120 sets reporting rate to 120 seconds = 2 minutes, reducing power consumption,
compared with the default 30 seconds ( FREQ,123456,30 ). For Robot Boats, one can set it to a very slow, low power, rate,
Such as every hour ( FREQ,123456,3600 ), but switch it to faster, if near, rocks, a fishing vessel, or doing a Bray Lake Test ;-)
Also
detailed documentation is here
.

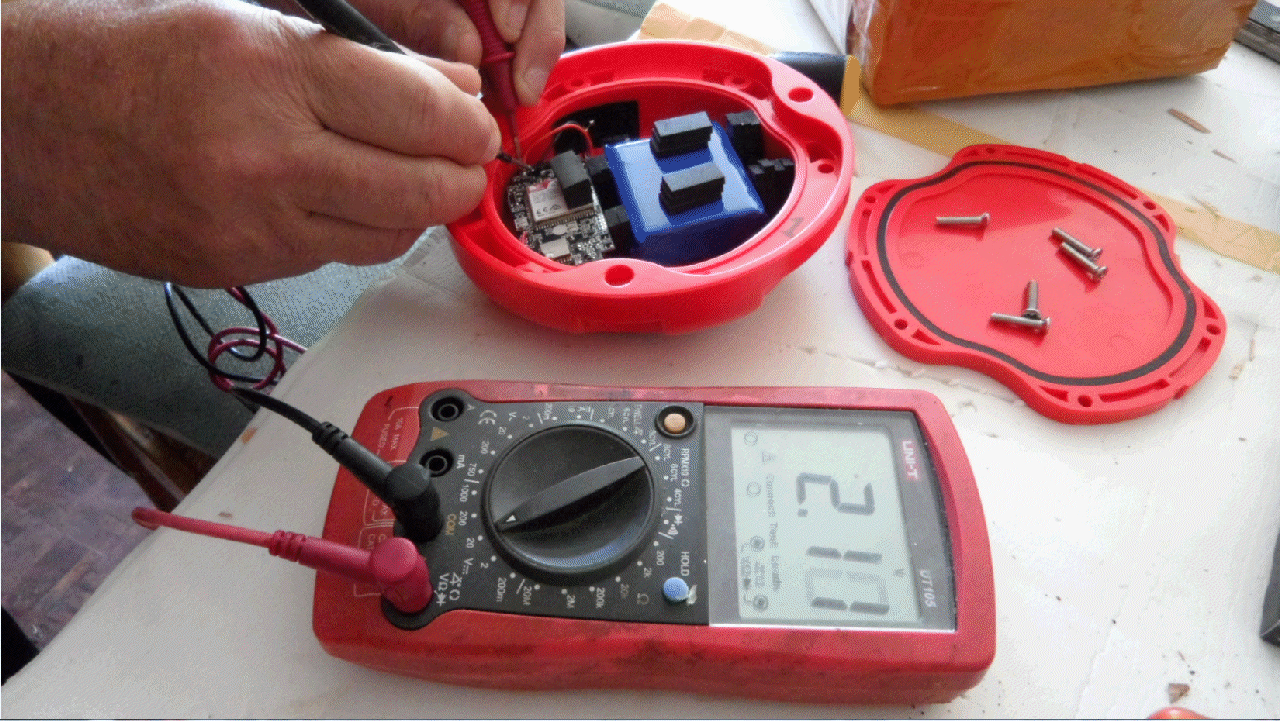

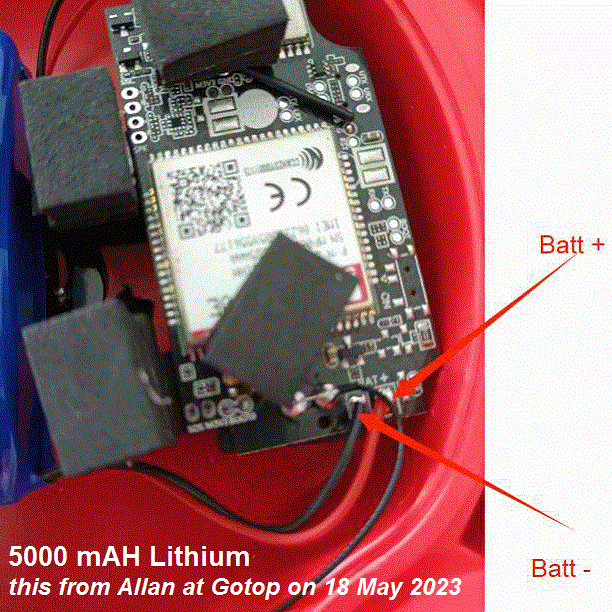

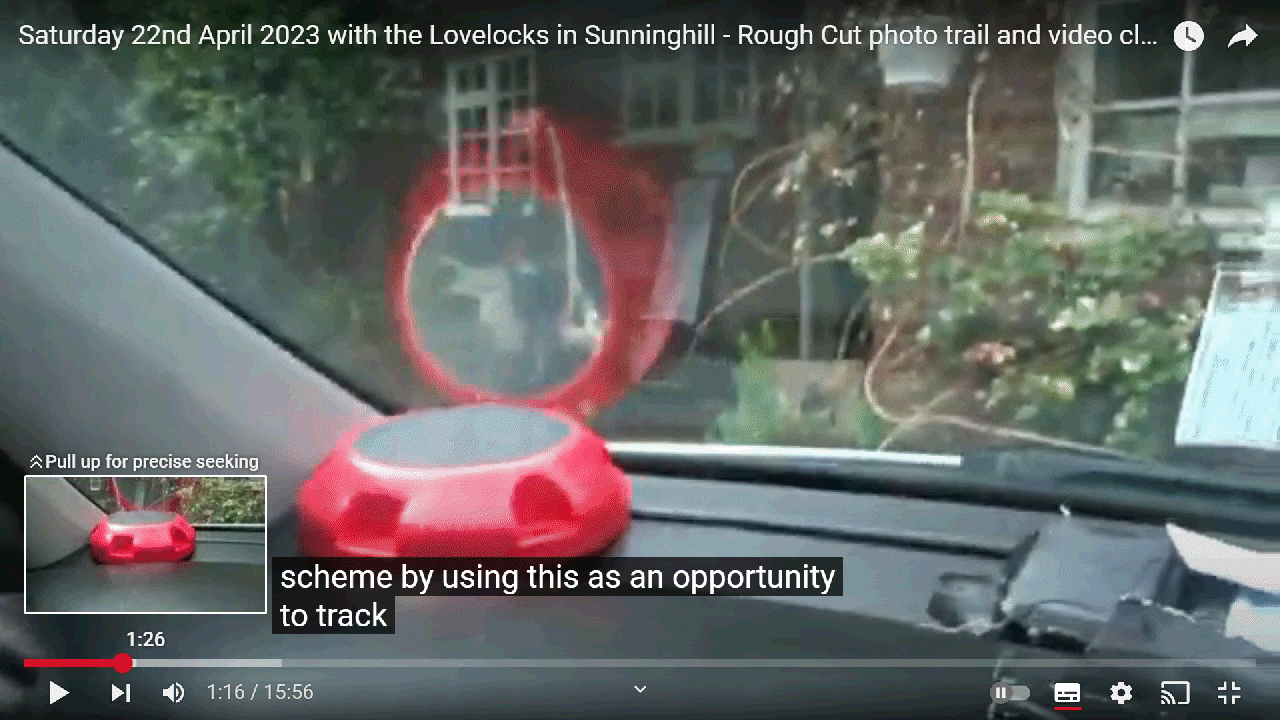

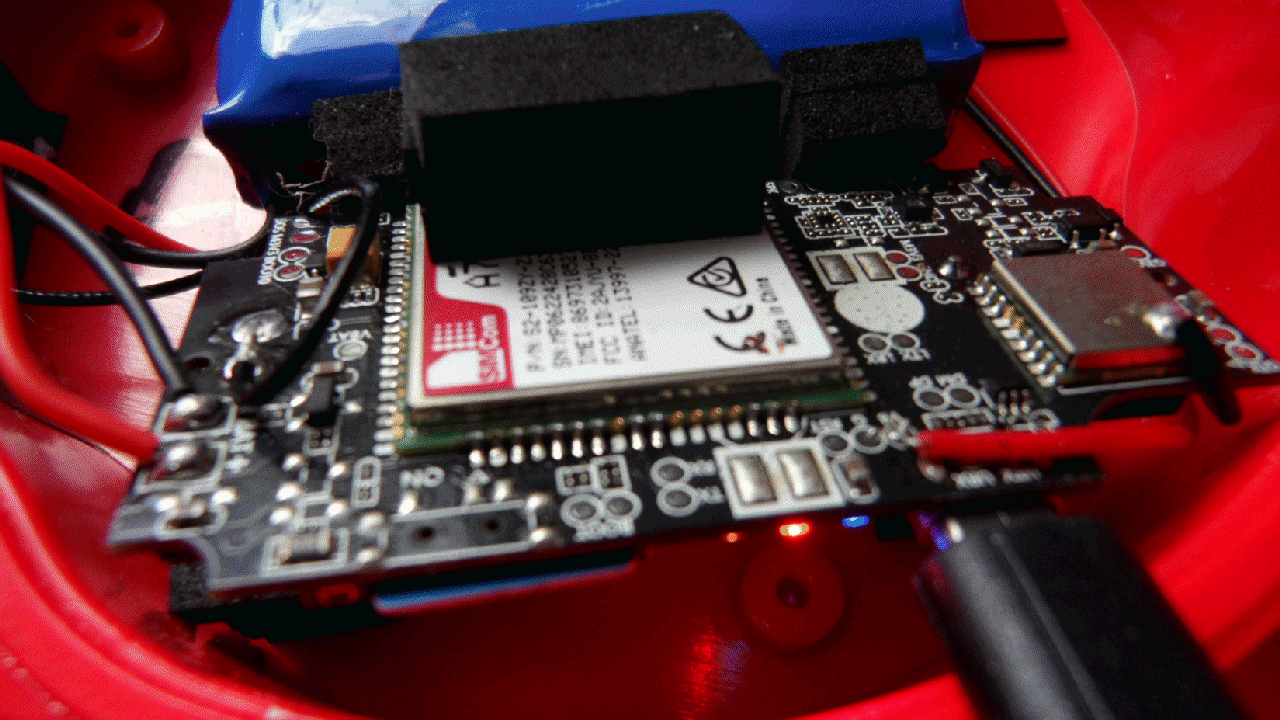

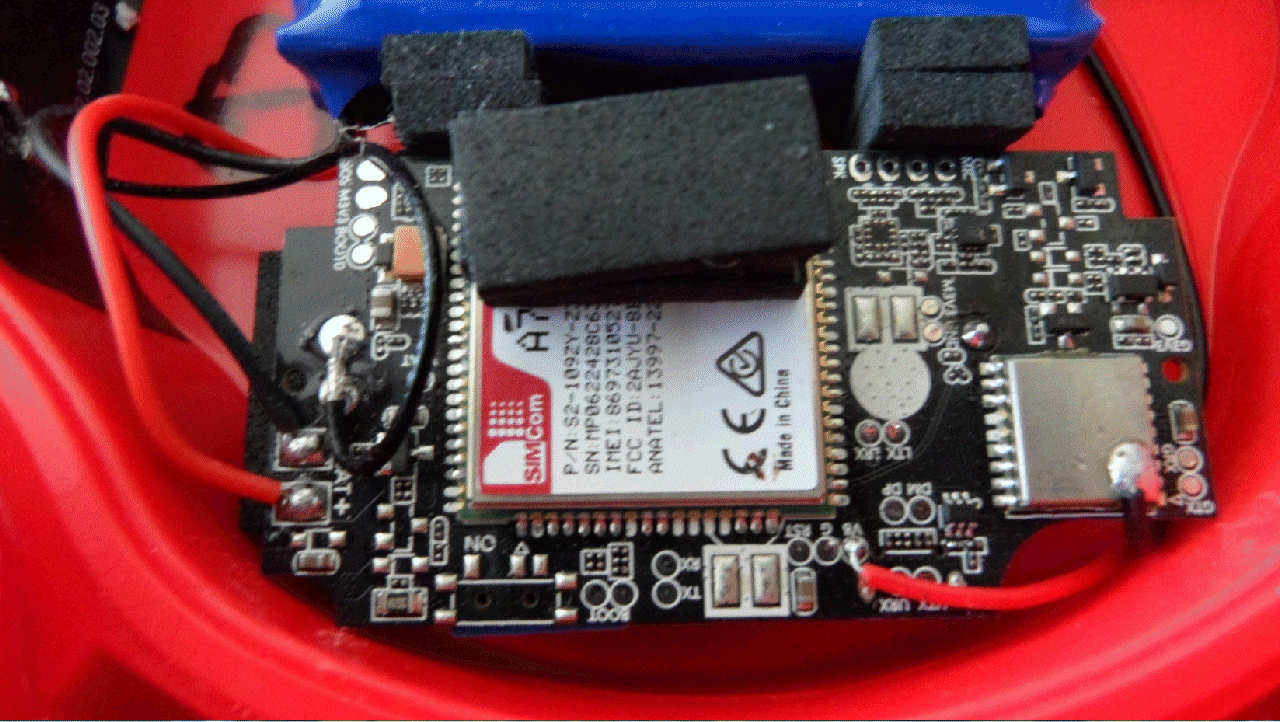

Tap or click to expand these photos, starting with checking the battery voltage, guessing (correctly) what pins to check :-)
More details on the "PocketPal" from Gotop - their SOS tracker ...
Here are the detailed specifications
in the
Gotop SOS Tracker catalogue as a PDF file: gotopsos.pdf
Or Tap or Click on this image ->
On Monday, July 3, 2023 at 09:42:35 AM GMT+1, ...
from an email conversation between
Robin and Allan of GOTOP in Shenzhen, China ...
Subject: Robin's Gotop SOS tracker now giving a trace ? Robin Lovelock in Sunninghill
( LOTS OF WORDS OF LITTLE INTEREST TO OTHERS, but resulting in that "NHS & Tracking" video :-)
From Allan: Our company website
www.gotop.cc
Demo of our tracking platform
www.110track.com
User ID:demotest
Password:123456
Thank you Robin
Note Robin's words about 110track.com having lots of capability but may be too complicated for many old people :-)
More useful additions Robin might add, for his own reference, are the SMS commands sent to the tracker to set parameters.
But most of this is in the context where the tracker information is public, rather than only for trusted people with a password.
Comparisons might be made with watching the progress of a particular airline flight, or ships at sea, etc, etc :-)
from Robin on Friday 7th July 2023:
Thanks to Allan at Gotop, more progress had been made with the "PocketPal" - anyone can 'phone it, if they have the number,
and have a handsfree conversation with Robin. Best done if they can see he is not driving at speed. He could be waiting in a queue or walking: maybe even flying or sailing :-)
One benifit was this update to his
Contact page, with this at the top:
QUOTE
For years, you could see where Robin's car was, or Robin,
on the
SpotT2 SatComs tracker
.
Now also

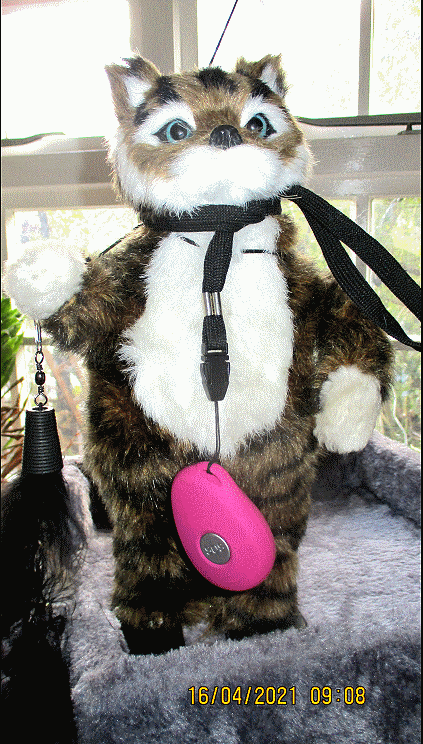

Robin's Gotop SOS Pendant
? :-)
Robin calls it a "PocketPal".
Robin's friends can call it: "Apen9 Tody" = 00447********3. Not Public, unlike things below ;-)
June & Robin Lovelock were
on Holiday in Sicily
from Thursday 1st to Thursday 15th June 2023. Did we see you there ? :-)
See
www.youtube.com/user/RobinLovelock/videos
for our latest news.
See Robin's
Covid19
page, to both educate and amuse.
Robin & June can video chat on Skype, Whatsapp, Zoom, Meet, Facebook, etc.
BUT they may not have the equipment with them and swiched on.
Robin is also on
www.facebook.com/robin.lovelock.3
,
www.instagram.com/robinlovelock/
,
twitter.com/Robin_Lovelock
,
and Whatsapp on +447736353404.
Some Social Media is restrictive and time-consuming.
If we don't already know each other, please see below.
e.g. full name ? address ? age ? Occupation ? Don't be shy ;-)
UNQUOTE.
DETAILED INSTRUCTIONS ON SETTING UP THE GOTOP SOS TRACKERS. From Robin on 27th July 2023...
I'm sure Allan and Gotop will not mind my publishing this: Tap or Click on
Detailed instructions for use of the Gotop SOS Q20 Product in gotopsod.pdf
or the picture on the right
. I see it has no copyright statements or even who the author is - I guess that's normal in China :-)
Anyway, it is a valuable document for working out how to set up this product. I'm in the process of checking out a second one,
but white instead of black. When I have it working, I wonder where I should stick it ? I'm sure someone will tell me :-)
Anyone can now track the
White SOS Gotop2 PocketPal
tracker. It MAY be June's handbag, Robin, or anything :-)
26th June 2024: WARNING! Gotop Trackers stopped 377 days after purchase - but see further below. e.g. some still work ;-)
It is now weeks and months since Robin noticed that his trackers from Gotop had stopped working: it seemed to be about 377 days after purchase.
He received a message from the 110track site to say, login, to visit their shop, and pay for it to continue. However, the login simply took
Robin to the tracking page. At the time of writing this, Robin is still waiting to hear how much he should pay, for the very good tracking service, and how to pay it ! :-)
The good news is that Robin does get an occasional reply from Allan at Gotop, and - on his birthday in May 2024 - the two SOS trackers resumed tracking again.
As Robin said to Allan - this made good "business sense" for Gotop and 110track, because Robin has a lot of friends,
around the World, and a few look at his "Photo Trail" Youtube videos, which often illustrate his use of these good little trackers.
BUT, it would be good if Gotop/110track could fix their problem, and have customers know how to "Top up" the tracking - if that is needed.
Some trackers on this page do not need more than a working SIM card ;-)
More information here, when Robin has the time :-)
The Picaxe Computer made in UK and Parallax Emic-2 TTS made in USA. Lower cost TTS somewhere ?
In Jasper's Telegraph article he explains that the materials used, to make Snoopy's little Robot Boat, only total about 400 GBP.
All products used are only adopted after months, or even years, of rigorous quality and reliability tests.
The Picaxe computers cost less than 10 GBP and are sold by Revolution Education Ltd, the developers and manufacturers of the PICAXE system.
The investment of time in writing Snoopy's Autopilot Picaxe software, was well worth the effort. I see no reason to change.
The American product that I shall certainly stick with is the SPOT Tracking system. It is well worth the Air Time cost,
of typically 100 GBP per year, to give reliable position reports, every 20 minutes, from anywhere, with very little power consumption.
Most of the remaing components, subjected to years of testing, originate from China. e.g. the extremely important solar cells,
and the Globalsat GPS.

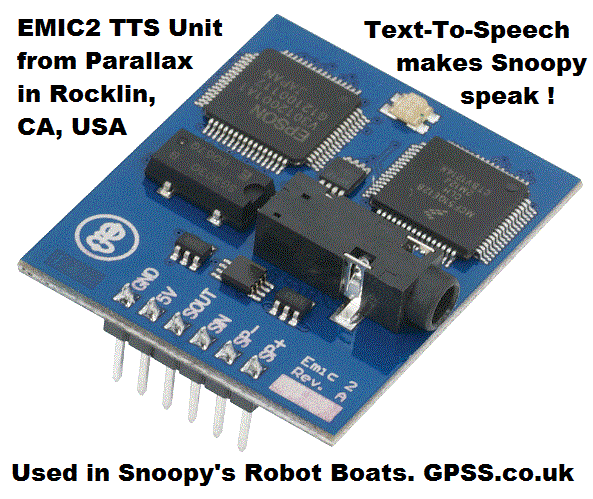

The Parallel Emic-2 Text-To-Speech (TTS) Module, has become essential for our testing. This includes it being plugged in for
exhaustive tests over at Bray Lake, or in various software test rigs, such as "Tea-Tray Tests", The "GPS Simulator",
or "Peter's Software Test Rig". The Enic TTS is a sensible price in the USA, but by the time it has reached us in UK,
with shipping costs, then Import VAT and Customs Clearance Fee, the final cost is nearer 120 GBP per unit.
That is still well worth it, for our limited number of people testing, but if it were less, we might consider it
as a "throw away" extra, for Snoopy's next Attempt. i.e. like the Pocket Pal, to listen in to local sounds,
or even, like the X009 below, to get remote pictures onto a smartphone.
One important snag for anyone offering me their TTS - it MUST be software compatible with the Emic-2 we use. i.e. just a "plug in and go".
The above was added after seeing the Invoice, still awaiting action, before I can receive my third Emic-2 from the USA.
I may get some local USA friends to visit Rocklin.
August 2017 update: No need - I found a UK supplier for this excellent product: just £60, delivered quickly, from
www.hobbytronics.co.uk
. See the
Snoopy
videos for how we use it :-)

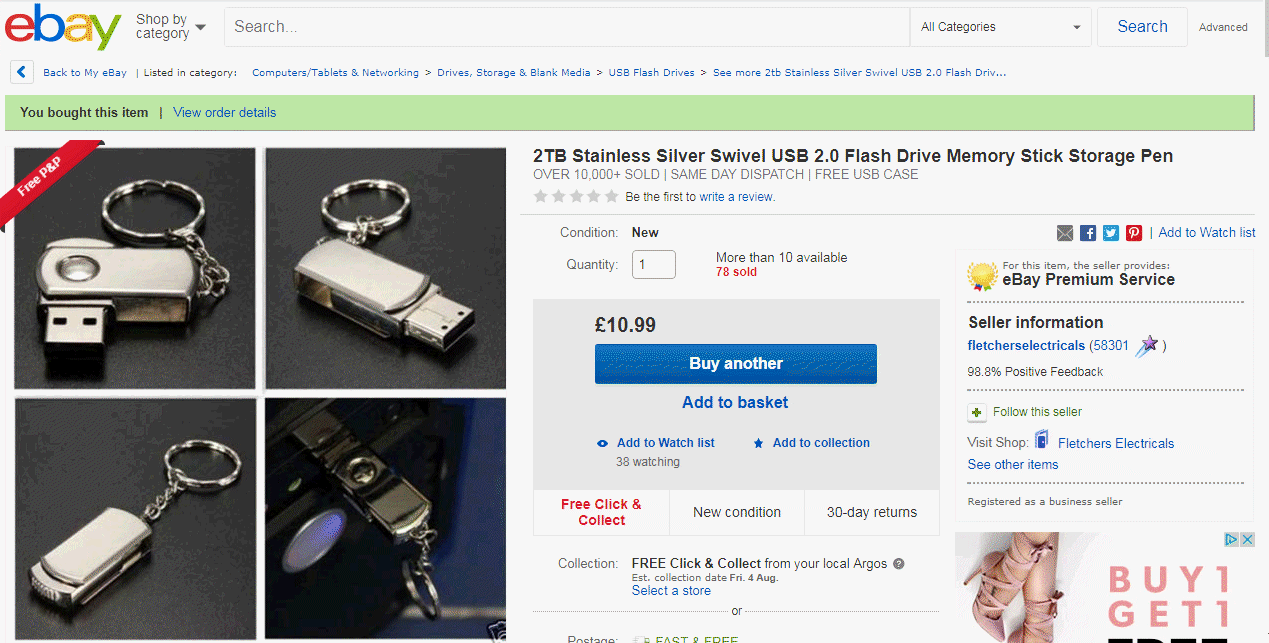

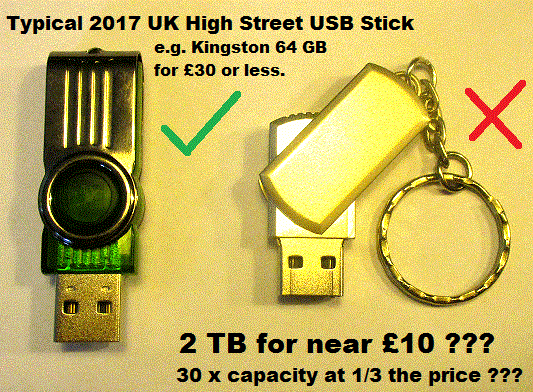

1 TB or 2 TB USB sticks from Fletcher Electrical in UK - or fake USB sticks from anywhere else ?
I must confess to being fooled, when I searched for high capacity USB sticks on E-Bay, and thought I had a bargain:
from a UK Supplier: Fletchers Electricals in Southport - not the typical high street product of 64GB at £30, but
1 or 2 TB for just £11. 2 TerraByte = 2000 GigaByte: over thirty times the capacity for a third the price !
I might have checked the
negative Ebay feedback for Fletcher Electricals
- it's quite clear what is going on here. I wonder if "Fletch" knows ?
I suspect not: why would he be so open about
where he lives
?
I hope Fletch will withdraw these fake products from his shelves,
and maybe help in exposing his supplier - who are giving him, and perhaps the Chinese, a bad name.
This video of Fletch is from our
2015 Christmas Newsletter
:-)

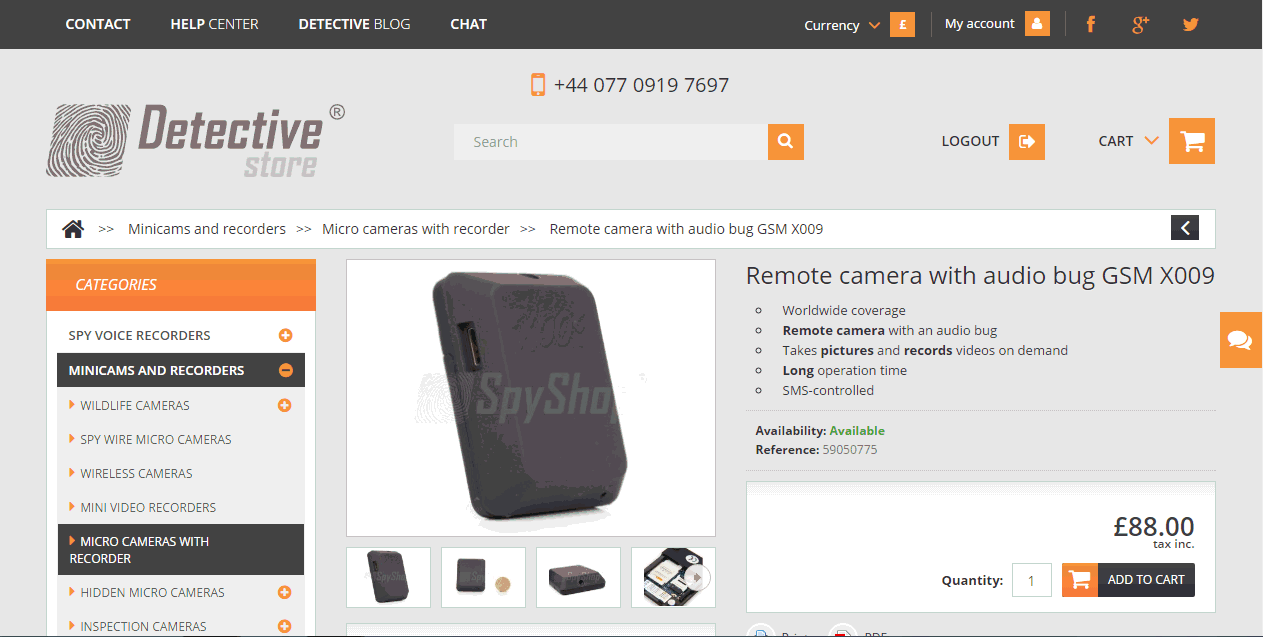

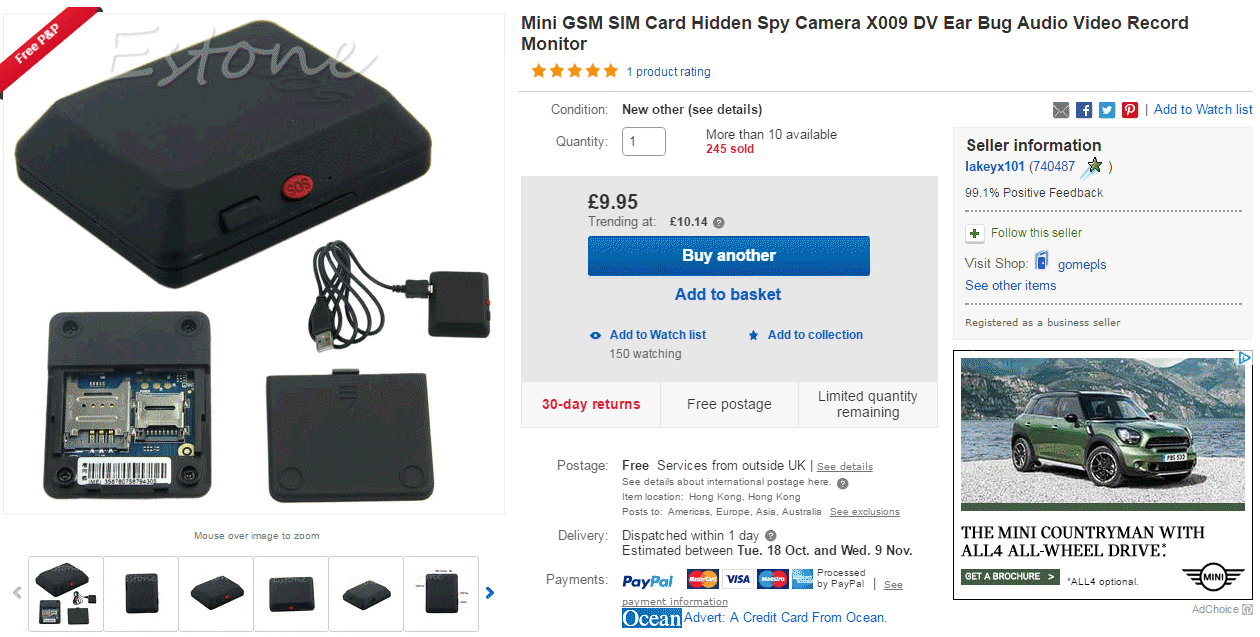

X009 GPS Tracker / Camera from China ... are there suppliers who understand the X009 ?
The "message from Robin" above was added in 2013, and the situation of buying products from China has not changed: e-bay is a cheap means
of finding interesting products - so long as they are only for "hobby projects" and not "business".
The "X009" is a typical example. At only 13 GBP or less each, delivered from China to UK, you (should) get a GPS tracker and "spy camera".
You only need to add an SD card (less than 5 GBP) and a mobile 'phone SIM card. I used EE "Pay As You Go", and this
is the significant cost, depending on how you use the product. My interest was as a "throw away" remote camera,
for one of
Snoopy's robot boats. I ordered two, from Chaoling in Shanghai, and they arrived in the same parcel.
One worked well (at first), including being able to control recording of sound and video, "listen in" to sound,
and request pictures to be sent back for display on a smart 'phone. That's me on the right, with my 'phone that is NOT smart.
Don't worry - my windscreen had not been stolen :-)
The following is from Snoopy's BlogX in March 2016 ...
The first bad news was the inaccuracy of the GPS tracking:
position errors of over 800 metres south-west of the true position. This might easily be fixed by the manufacturer,
(if we knew who that was),
since it could simply be the GPS needing to be set to WGS84. If this problem were fixed, it opens up a wider range
of applications.....
Even if the GPS did not work at all, at that low price, the product is still of use, as a remote camera.
I then tested the second tracker, which I expected to be identical: it was not.
The microphone hole was at the front, beside the camera, and not at the back.
The LED was red, and not white. More importantly, the product would not function:
no reply was given to DWEN GPS position requests. 000 requests for a photo to be stored
resulted in an error message. Both trackers were tested with the same SIM and SD cards.
Despite this, I had given positive feedback to the seller, Chaoling017,
and hope we can help each other. Let us hope these products were not rejected prototypes stolen from a skip :-)
I ordered a third X009 from the same supplier.
All three examples of the X009 were faulty: DWEN position requests might result in reply of "Get position information failed",
or the GSM network may fail to find the device at all. It is clear that Chaoling017 in Shanghai has a source of faulty X009.
My friends in China are investigating X009 suppliers. The Chinese Government may be interested in distributors
who give their country a bad reputation.
Does anyone know a supplier who can be trusted ? :-)
In September 2016, I was contacted by Kamil Banowicz of detective-store.com / the Spy Shop in Wroclaw, Poland.
He suggested that we might be able to help each other, such as posting suitable articles here, and/or my testing
some of their products. I was struck by the openess and professionalism of his web sites, and directed him
to this article about the X009 on my "AVL" page. He responded with their X009 advert, and I soon placed an order,
even though, at 91.50 GBP, it was a little more expensive than the typical 10 GBP if ordered direct from China.
Click on the pictures to enlarge.
The X009 soon arrived, and after adding SD card and SIM cards, testing was started. This version
had the microphone hole at the back, and a white LED. Sadly, it showed the same
faults and limitations as the earlier samples. e.g. response to "dw" was a GPS location 875m south west
of the correct one. More seriously, some functions worked, but some did not work at all. e.g. the device did
auto-reply with sound, if 'phoned. It did accept the "666" (Battery), and "999" (format) commands.
e.g. the SD card then had blank folders, all dated 08/01/2013. However, commands such as "000" (save photo)
gave a failure response. These words will be updated, if and when there is some progress to report.
e.g. Maybe Kamil should do some tests on a X009 in Wroclaw ?
October 2016: I've ordered yet another X009, at 9.95 GBP, direct from China. Click on the advert at top left. Some will say that I'm a "glutton for punishment" :-)
SPOT Trace uses SatComms instead of mobile 'phone communications...
In March 2016 I discovered the
SPOT Trace
at 78 GBP. It looks as if it could be a much neater solution
than our modified SPOT Messenger + Picaxe Timer used for tracking Snoopy's robot boats,
far out to sea, including mid-Atlantic.
SPOT Trace requires the usual SPOT service contract, costing about 100 GBP per year.
See the
SPOT Trace User Guide for details
such as power consumption. It seems a small solar panel and 4 NiMH cells should be enough to keep the SPOT Trace running,
even if it were reporting position every 5 or 10 minutes.
The only snag found is that SPOT Traces includes a movement sensor,
which suppresses position reports if there no movement detected.
This is an inconvenience if doing 24/7 testing on lakes under all weather
conditions, including very light wind.
More details can be found on
BlogX,
Snoopy's Experimental Blog page.

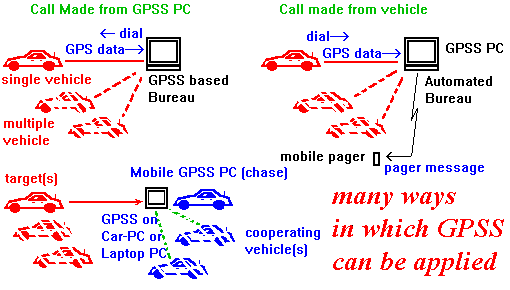

from 1995... how GPSS can be used for remote tracking ...
This "AVL" page explains the ways in which GPSS, the GPS Software, can be used for remote tracking.
GPSS is run on a PC which could be in the user's home or office. The GPS is part of the AVL hardware
which is fitted to the car or truck to be tracked. A PC is NOT needed in the vehicle.
The PC showing the map could be mobile, if it is a laptop or tablet PC.
GPSS communicates with the AVL hardware through the mobile telephone network, or some other
communications system such the Inmarsat, ORBCOM, Iridium or Thuraya satellite systems.
In recent years the lowest cost solutions use the mobile 'phone network.
Trackers are becoming small enough to be used as "personal trackers" to follow people, animals,
or other objects: not just cars or trucks.
remote tracking using GPSS on Pocket PC ...

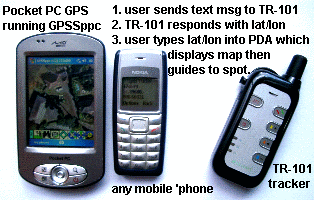

A simple example is where the target being tracked
has a small personal tracker like the TR-101 planted on it. A text message from a mobile
'phone will result in the tracker responding with a text message within typically less
than a minute.
The text message from the tracker will include a latitude and longitude in decimal degrees.
e.g. 51.3968 -0.6603. This could be looked up on a paper map, with a grid of lat/lon
lines printed on it, such as from google earth. Or you could type it into google maps if you are online.
But you can also just type the lat/lon into GPSSppc running on the Pocket PC based GPS.
The destination will then be placed on the maps at the target location, and you will be guided to it.
The information below is for the more direct, but technically more difficult, automatic live tracking.
It seems any Pocket PC based GPS with bluetooth could be used with a bluetooth 'phone
to use GPSSppc for remote tracking in "chase" mode. For an introduction to GPSS for
the Pocket PC see the
GPSSppc page, and the brief GPSSppc
User Guide.

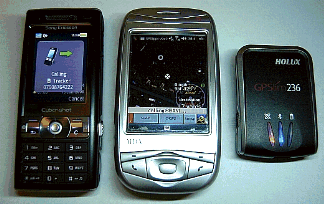

Sham Bahri has managed to get GPSSppc working in "chase" mode, by using GPSSppc running
on a Pocket PC based platform, receiving both local GPS and remote GPS data over bluetooth.
Details are:
T-Mobile Vario (WIZA200) Smartphone running GPSSppc v9m under WM6: Holux Slim 236 Bluetooth GPS on COM 8 at 4800 and Remote Tracking using Sony Ericsson K800i phone as
a modem on Bluetooth COM 7 at 9600.
More information on work by Sham
getting GPSSppc remote tracking to work on Pocket PC based smartphones is on the
ChasePPC page.
GPSS "CHASE" mode
For the majority of applications the GPSS PC may be fixed, within home or office.
However, it may also be mobile, as a Laptop PC which can be taken to a potential
customer for demonstration, or used near the target vehicle for "chase".
If the Laptop (or Car-PC) has a GPS, then GPSS can be used in it's simpler "navigation mode"
- showing your own location on the map, and providing voice guidance to a destination.
If GPSS is switched to "CHASE" mode, it will show two symbols on the map: your own
position, based on the GPS directly connected, and the target location, based on data
coming in over the 'phone network. The Laptop must obviously have a suitable modem for this.
In CHASE mode GPSS will show both vehicles on the moving maps and treat the target as
a destination. i.e. the driver will receive voice guidance to the target - which could be moving.
UK Police were among the very first users of GPSS for Covert Tracking.
i.e. tracking of a vehicle without the driver knowing.

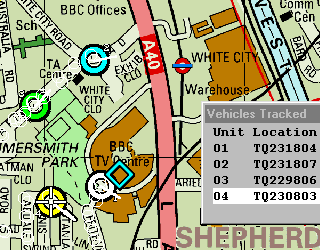

The picture on the right was from the "Put It To The Test" UK Television programme,
first broadcast in 1996, which is on our
AsOnTV page.
communications are important ...
Some applications or countries may require alternative communications to be used:
For ORBCOMM Low Orbit Satellite communications, see the
ORBCOMM page.
For Inmarsat-C satellite communications, see the
INMARSAT page.
For Thuraya satellite communications, see the
THURAYA page.
For use of other radio communications, see the
RADIO page.
For phone-to-phone tracking, see the
Where R U page.
For use of GPSS with GSM SMS, see the
SMS Page
For a strange example of web based tracking, see the
Bottle Story page :-)
GPSS can be used with any one, or any mix of the above communications systems.
When GPSS is used in "multi-vehicle tracking" mode, it shows each of the vehicle
locations on the maps. The "Vehicles Tracked" summary shows a line for each vehicle,
and more information such as status, decoded text messages, pictures and/or sounds,
can be retrieved simply by clicking on the summary or vehicle symbols.
Text reports may also be generated from stored GPS data.
Alternative 'Direction Finding' Technology
Small "bugs" or radio beacons have been used for years
to track animals or used as low cost car security
devices.
See the
Direction Finding page
for how a computer
and GPS can be used to triangulate and chase the transmitter on
the car, person, animal or bird.
This DF technology was first televised in the UK when
Meridian filmed GPSS being used to find escaped falcons.
See the
Finding Falcons page.
These devices have the advantage of being cheaper,
and much smaller. The disadvantage
is their range is normally only a few miles, so they need to be
"hunted down" with a suitable DF receiver.
from Robin to potential business users ...
are you in business and new to AVL and remote tracking ? see the
AVL Needs page.
We do not sell hardware or complete solutions.
We simply licence others to use our GPS Software, GPSS.
If you wish to sell this
type of remote tracking system, or build it yourself, please visit the
business Page.
You will see that I ask you to get what I call
"the minimum tools of the trade" - a Laptop PC and a GPS,
and test GPSS with GPS before contacting me via the "Quiz"
on the download page.
It is best to start simply, testing GPSS in it's simplest
"navigation" mode, with the GPS connected directly to a Laptop PC
running GPSS. After adding mapping for your country, you can then
move on to remote tracking tests - with my help.
Anyone in business is welcome to make one initial 'phone
call to me, using a number on the contact page,
to establish if GPSS will be of any use to their business,
before investing time in these steps.
The steps we normally go through with new business contacts are:
1. Free use of GPSS, and support from me, while you test the software,
with real hardware, and demonstrate it to your existing business partners.
2. Purchase of a GPSS Demonstration Licence to enable you to demonstrate
GPSS to possible future investors, partners and customers. This is an important step
for us both.
3. Selling or exploiting GPSS-based solutions within an agreed framework.
We encourage
our business partners to collaborate rather than compete, and
I do not issue demonstration licences lightly.
Our large network of "enthusiast"
GPSS users can also often be of great help - particularly to those involved
in export from their own country. These enthusiasts also help us test new
developments such as GPSS for the
Pocket PC
which now supports "chase" on suitable Smartphone products.
I look forward to speaking with you soon.
Robin Lovelock
Sunninghill UK, January 2008.
Partners licenced to use GPSS
You will find information on these companies on the
partners page.
GPS + Mobile Phone for Covert Tracking
In recent years the most popular technology for remote tracking
involves a combination of GPS receiver and mobile 'phone.
The GPS and
'phone will normally operate through glass, plastic or fabric, so is
not difficult to install (e.g. hidden near front or rear window).
It just needs a 12 volt supply, from the car battery.
Typical current drain is between 0.05A and 0.2A,
depending on the product and whether the GPS is switched on (e.g. from the
vehicle ignition). So even a small car's 35AH battery is often sufficient,
without installing more complex power-saving devices.
Some companies
obviously specialise in hardware more suitable for covert installation.
e.g. inclusion of the battery.
AVL hardware products, such as the Falcom STEPP shown here, include "intelligence"
in addition to the GPS and mobile 'phone electronics. i.e. they include a processor
and memory to allow the product to be used in a number of different ways.
One of the most useful features is to store the GPS locations for a number of days,
even if the vehicle is not in communication with the GPSS PC. This often provides the
lowest cost solution to the requirement, "where has that vehicle been every minute last week ?".
i.e. GPSS makes communications contact and downloads the data when it is needed, avoiding
the expense of minute-by-minute tracking. The user can also answer the question,
"where is the vehicle now ?" whenever they wish.
Hardware Components for AVL and Covert Tracking
There are now many "GPS/GSM" products becoming available of smaller size amd lower cost
- such as the S-911 Personal Tracker from
www.laipac.com
on the left. Other examples are the G-19 Trackstar from
www.sanav.com (on right)
and the GT03 (Personal tracker) or GT02 (vehicle tracker) from
www.cothinking.net
or their distributors (below).
Globalsat have the TR-101 personal tracker, shown here on the left.
Globalsat have been on our Partners page for years, and their TR-101 is
here.
Typical cost of these products, for one-off purchase including the distributor's markup
is in the ballpark of 100 GBP/Euro/USD. Shop around and you may find new products
at much lower prices -
but be careful you know exactly what you are buying.
For years many GPSS-based vehicle systems were delivered
using the Falcom A2 GPS/GSM unit pictured on the left.
In recent years this was replaced by the Falcom STEPP seen further down on the right.
All these products include both GPS and mobile 'phone electronics in a small container.
Falcom is based in Germany on
www.falcom.de
Scan Projects Solutions in Denmark, on
www.scanp.dk
supply hardware including modified
Falcom units able to download stored GPS data to GPSS (see testing section below).
This capability can now be found in more recent Falcom products such as the
"STEPP". This supports both dialup facilities
including recorded history using the SIM card data line and SMS capability
using the voice line (see "the SIM card" below).
Distributors for Falcom products include Sequoia in UK on
www.sequoia.co.uk.
You can see their Falcom STEPP page
here.
Azzurri in UK, once appearing on this page, no longer distribute Falcom products.
Be careful what you buy.
See "STEPP2 Problems" below.
Before buying any product, ask the supplier if it will work with the GPS Software from www.gpss.co.uk.
If anyone knows of other products, well-proven with GPSS, please let Robin know via the
contact page
so he can update this section.
Products such as these include three elements to construct the GPS-'Phone device: 1) the GPS receiver
with it's antenna; 2) the mobile 'phone electronics with its antenna; 3) electronics
to connect (1) and (2) and provide "intelligence".
For years the most popular GPS component for covert tracking seemed to be the Garmin GPS35 - see the picture on the left.
This can be setup to output at a different speed to standard 4800 for NMEA. e.g. 9600 for GSM and 1200 for analogue. It can also be setup to output
only the $GPRMC sentence, which carries location, speed and heading.
Another popular device was the Siemens M20 GSM Modem, which combined items (2) and (3) above within one package. The M20 may be purchased from TDC in the UK on fax 44 1256 332810 or e-mail sales@tdc.co.uk. Distributors of the
Wavecom in France is also a manufacturer of GSM modems popular in this market.
Garmin GPS35 and other GPS receivers may be found on the
GPS page.
Voxson in Australia on www.voxson.com
had a complete solution to compete with
the excellent Falcom products. Version 5.5 and later GPSS.EXE supports the
Voxson +LOG recorded data feature.
Commands to download stored GPS data from Falcom or Voxson units appear
within the section "Testing of GPSS with GPS/GSM" below.
The iTrac units by Cheng Holin in Taiwan are being used with GPSS by Secure Tech International, listed on our
Partners
page. GPSS v6.6 and later supports the proprietory &GPS message format used by the iTrac, instead of the preferred
industry-standard NMEA GPRMC format. This was the result of collaboration between Secure Tech and Sunninghill Systems.
Technical Specifications on the iTrac are available
here.
STEPP2 Problems
The Falcom STEPPII does not include "built in" capability found in earlier Falcom products such as the A2 and first STEPP.
Falcom, based in Germany, have been making good, reliable GPS/GSM products for many years,
and have been supplying these products through their distributors into many of the 160 countries
in which GPSS is now used. All these products, including the first STEPP units, could be used
"straight from the box", with the required software and default settings already available.
These simple, default facilities included:
- the automatic answer of a data call from any modem with live NMEA GPS data (typically $GPGGA and $GPRMC
sentences).
- the automatic reply to a polling SMS such as "&REQ POS" from any mobile phone or GSM modem with
texted NMEA data.
These "built in" default facilities, which only required
the solution provider to insert a SIM card and apply 12v power, made the Falcom product line
very attractive. The more sophisticated features, such as following up a direct GPSSDIAL.CFG
connection with downloading stored "history" data, or configuring the product to make a text
position report on a regular basis, or in response to a closed switch - were not difficult
to configure - IF needed for the particular application.
The advanced features, if needed, could be setup using a simple data cable and
software plus documentation downloaded from the Falcom web site.
The more recent STEPII product is being supplied without this
built in default capability. Furthermore, it seems that the process to do the required loading
of parameters, and maybe even software, cannot be done with a simple serial data, but may require
a "starter kit" costing two or three STEPP units. It is understood that the STEPII has many
additional features, not found in earlier Falcom products, but that of replying to a text from
any 'phone will not be available until the next software update, planned for March 2007.
If you intend using the STEPPII with GPSS, have your distributor configure it for you, or make
sure you are capable of doing it yourself.
getting a SIM card
These GPS/GSM tracking products need a SIM card - as does any product
that exploits the mobile 'phone network. Some suppliers will include
a SIM card, but many will not. If the product is only using SMS then
almost any SIM would do, the text messages going on the voice line.
However, some products like the Falcom STEPP
support both SMS based reporting and direct dial-up connection.
For this the SIM should also have a data line. Solutions will vary
between country and 'phone network provider, including some where
there is a regular subsciption cost (a "contract") at perhaps 5 GBP/month or more.
One of the lowest cost options is a "pay as you go" SIM, but you need to
make sure there is an outgoing text (or 'phone call) every few months,
or the network may "switch it off". Remember your GPS/GSM product
might only be receiving calls from your GPSS computer, and therefore
not "spending money" with the SIM provider. One option I've tested
with success in UK is to buy a pay as you go Vodafone SIM at 5 GBP (total),
register it, then have a data line added, at no additional cost,
other than perhaps 10 or 20 GBP of "top up" to ensure that the
occasional outgoing texts (at least one every three months to keep it alive)
do not result in it being switched off. i.e. the GPSS PC may dial into
the STEPP, for second-by-second tracking, or retrieval of stored data.
Occasionally this PC (or any mobile 'phone) sends an &REQ POS message
to cause it to reply with a position report and spend perhaps 0.12 GBP.
Hardware vs Communications Costs
Typical cost of hardware to be installed into each vehicle will obviously
depend on the product, the distributor, and how many are purchased.
However, in 2003/2004 the cost of hardware such as the Falcom STEPP
might be as little as 350USD in one-off quantity. Remember that
this does not include the cost of the "solution provider" travelling
to a customers' premises and installing
hardware into each vehicle - he also needs to make a profit ;-)

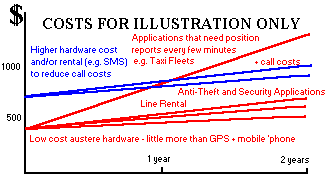

The lowest cost solution may be a combination of GPS and mobile
'phone. The total cost is then that of the hardware, and the
monthly rental of the 'phone. There will be an additional cost, for each
'phone call made, but this will be small if the number of calls is small.
For many anti-theft
or security applications this may be sufficient. If the vehicle owner wants to know where the vehicle has been, each minute
of each day, this can achieved with memory in the
hardware. e.g. the device might be called once per day, to download stored
locations recorded every minute of previous 24 hours.
The GSM Short Message Service (SMS) can be used to reduce the running costs
for applications (such as Taxi Fleets) that require continuous minute-by-minute
tracking of the vehicles. A GSM modem will then be needed on the GPSS PC
- which could then also be mobile.
Getting Your First GPS/GSM Prototype
If you are a business, and have already visited the
business page,
got the minimum "tools of the trade" (Laptop PC and GPS for in-car tests), and
registered with Robin, you may then be ready to get your first piece of remote
tracking hardware. You might assemble it from components, or buy a complete
hardware solution by mail-order (without GPSS or installation) from a distributor
of Wavecom, Falcom, or others that build these hardware solutions.
You require a GPSS Licence
ANY USE OF GPSS FOR REMOTE TRACKING MUST BE REGISTERED.
YOU MAY NOT USE GPSS FOR DEMONSTRATION WITHOUT PERMISSION.
DEMONSTRATION TO OTHERS REQUIRES PURCHASE OF A LICENCE.
Those businesses who follow the procedure on the
business page,
are often granted a free licence, so they can test
GPSS use for remote tracking.
The cost of GPSS licences depend on the application,
and the quantity purchased.
Those who buy in quantity get a large discount.
Prices here are in GBP (Pound Sterling. 1 GBP = approx 1.5 USD)
The cost is 100 GBP per vehicle tracked - if 9 or less licences are purchased.
The cost is 50 GBP per vehicle tracked - if 10 licences are purchased (50% discount).
Purchase in larger quantities will cost less. The discount is negotiable.
This is for vehicles tracked via radio, ORBCOMM, GSM and other mobile phone systems.
In-Car navigation licence cost is less, at 20 GBP per vehicle, for purchase of 1 licence.
So a "chase" car fitted with own GPS, chasing 1 vehicle, is 120 GBP (1 off cost).
Contact Robin for negotiation of higher volume purchase, or other variations
such as Inmarsat-C, or where "air time" is being sold, rather than hardware.
Our policy is to keep GPSS cost less than 10% of total end-user price
- much less for those who buy in higher quantity.
The first licence purchased is normally the "Demonstration" Licence, at 100 GBP.
This permits you to demonstrate GPSS to others, and includes a listing
below under "B", and configuration of GPSS with your own startup screen, etc.
Testing of GPSS with GPS/GSM
ANY REMOTE TRACKING MUST BE AFTER A BUSINESS QUIZ RESPONSE.
YOU MAY NOT USE GPSS FOR DEMONSTRATION WITHOUT PERMISSION.
DO NOT TEST REMOTE TRACKING WITHOUT THE 1B9V KEY CODE.
UNAUTHORISED USE OF GPSS MAY DAMAGE YOUR BUSINESS.
YOU HAVE BEEN WARNED.
before you start testing ...
Please contact Robin. He will often grant free registration and help in other ways.
The Control-R registration text, replacing "UNREGISTERED", should
be "TEST 1B9V Joe Bloggs" - where "Joe Bloggs" is your full name.
If possible, we suggest you start by testing GPSS directly connected to a GPS receiver,
using the software and maps from the download pages. This GPS->Laptop PC
use of GPSS can run UNREGISTERED. If you wish, you can do this BEFORE the
Business Quiz questions are answered, and Robin gives you the key code.
You may wish to leave
this "in-car" copy of GPSS unchanged (e.g. in c:\gpss04) and copy all files
to another directory (e.g. c:\gpssx ) for remote tracking.
the SIM card - which number ?
The SIM card within the GSM modem will either have only a "voice line" number,
or both "voice line" and "data line" numbers. They will have different numbers.
Dial up tests below, which involve a direct connection between the GPSS PC
and the remote GPS/GSM device, requires a "data line". i.e. this is the
number that will be put into GPSSDIAL.CFG below. For SMS use with
SMSH and products such as the Falcom STEPP unit,
the "voice line" should be used. When testing a STEPP you may prefer
to start with the SMS test since it could be done with just a mobile
'phone instead of a PC running GPSS and SMSH. i.e. you simply send a text
message from your mobile 'phone containing "&REQ POS 0" to get a $GPRMC
message back - depending on how the STEPP unit is configured.
first "dial-out" tests ...
You will need a modem, connecting your PC computer running GPSS
to a telephone line. e.g. the one you use for Internet access.
If the modem is NOT on COM1 (e.g. COM2) you must edit GPSS.CFG
and change COM1 (e.g. to COM2).
You must also make a file GPSSDIAL.CFG holding the remote GPS/GSM
unit 'phone number. An example of GPSSDIAL.CFG is :
1
Dial,ATDT12345678@9600
- where 12345678 should be replaced by the telephone number of the device.
The duration of the call may be limited, such as the example below
of 59 seconds,
by use of a file DIALTIME.CFG
59
When you run GPSS it will now display two buttons [Dial] and [Hangup].
Clicking on [Dial] will dial up the remote unit, using your modem, and
the black lamp on the dial form will turn red.
After perhaps 10 seconds, it should turn yellow, as a connection
is made with the modem in the remote hardware. If there is a GPS
in the remote hardware, the light should turn green, and a map
be selected automatically to show the vehicle position.
GPSS should continue tracking it, second-by-second.
If you
wish, you can record the incoming GPS data for later analysis (with Control-A
Form), by hitting the % key to create a
NME File
Clicking on [Hangup] will terminate the 'phone call.
DO NOT TRY TESTING SUCH AS THIS ABOVE UNLESS
YOU HAVE PERMISION AND A "1B9V" KEY CODE FROM ROBIN.
Thinking of using GPSS without permission ? If so, please visit the
PIRATE Page.
Sending commands to Falcom or Voxson units
Some GPS/GSM units require
to be send a "password" or particular command, before
they will send back GPS data. Additional commands
are used for things like requesting transmission of the
stored GPS data (e.g. vehicle position every 1 minute
for past 24 hours).
The Falcom STEPP unit would not normally require such a command,
since it would respond with the GPS data as soon as the connection is made.
These commands can be sent manually, by adding buttons
to the GPSS Dial Form. e.g. a second button labelled "LIVE"
in GPSSDIAL.CFG
2
Dial,ATDT12345678@9600
LIVE,&REQ INT
The user clicks on "Dial" as before, to make the GPSS PC
dial out through the modem and connect with the remote unit.
When the connection is made, the GPSS "dial light" will go
from red to yellow. The user then clicks on "LIVE" to send
the command "&REQ INT" to the Falcom unit, which should
then immediately respond with live GPS data (light goes green).
The equivalent command for a Voxson unit might be:
START LIVE,AT+WDMOD=0_1_0_1_1_1
- to start live data transmission, or
STOP LIVE,AT+WDMOD=0_0_0_1_1_1
- to stop the data. The Voxson unit would
remain in this state, so could be configured
to reply with live data when the connection is made.
However, this may not be best if recorded data
is to be retrieved from the unit - the user might
be confused by what is live and what is recorded.
Use of other files, like CONNECT.CFG, AUTOREC.CFG, HANGUP.CFG enable you
to configure GPSS, so only one button might be needed in GPSSDIAL.CFG for
each vehicle tracked.
You can make GPSS do the LIVE automatically, by adding a
file named CONNECT.CFG holding:
1
dial,ATDT12345678,&REQ INT
Before dialling, you can start GPSS recording by hitting % key. (so the recorded GPS
data can be plotted later with Control-A)
You can make GPSS start recording with the % key automatically, by adding a file name
AUTOREC.CFG holding:
1
dial,ATDT12345678,FREDB
data will then be recorded to FREDB001.NME, then FREDB002.NME, etc.
Some Falcom-based systems like to be configured so that they are
sent a command telling the remote unit to hangup the line
(although this should happen automatically when the line
is hungup from the GPSS PC end).
You can make GPSS do the remote REQUEST HANGUP automatically,
when you click on the
Hangup button, by adding a file named HANGUP.CFG holding
1
dial,ATDT12345678,&REQ HANGUP
(if you wish the Falcom unit to hangup the line at the vehicle end)
Some Falcom units, such as those from Scan Project Solutions in Denmark,
can store the GPS data for later retrieval at high speed by GPSS.
The data might typically be stored every 1 minute, or when the
vehicle has moved another 100 yards - so several days movement
can be retrieved when wanted. i.e. to answer the user's
question, "where has my vehicle been every minute in the past day ?".
For Falcom units the command line in GPSSDIAL would be:
GET,&REQ HIST
and for Voxson units it would be:
GET,AT+WDLOG="READ ALL"
Configuration of GPSS for remote tracking
GPSS has a very "open" design, and changes can be made in how it behaves
by the simple removal, addition, or change to files, including WAV sound files.
e.g. "let me show you something I did earlier" is implemented by playing
the sound file LETMESHO.WAV, so removal of this file will remove this
spoken message. If GPSS does not receive GPS data, it reads data from
the file GPSS.NME which simulates incoming GPS data and operator keystrokes.
So replacing this file by a simpler one (e.g. NOTHING.NME) will replace
the demonstration by a default map (or picture).
Here is a checklist of typical changes to GPSS for remote tracking:
- addition of GPSSDIAL.CFG for direct dial-up use described above.
- addition of
SMSH
to handle incoming SMS messages.
- replace GPSS.NME by NOTHING.NME or an alernative.
- removal of LETMESHO.WAV - "let me show you something I did earlier...".
- remove or replace $$$START.WAV - "This GPS software is given free to individuals ..."
- removal or change to other
sound files.
- addition of $$$START.BMP (640x480x256 colours) with your own startup logo.
Configuration for Multiple Vehicle Tracking
For technical information of Multiple Vehicle Tracking with GPSS,
please visit the
MVTECH Page
There have been
visits counted by
Digits Web Counter since 2nd December 2015.
